Procedure strumentali di Torino

Le più recenti modifiche alle procedure strumentali di Torino sono:

– istituzione di nuove procedure STAR e SID RNAV1/RNP1. E’ stata aggiornata la geografia ATS a causa del ridimensionamento della CTR di Torino e sono state modificate le frequenze APP (transitate a Milano Radar)

(AIRAC A10/23, in vigore dal 30 Novembre 2023).

– revisione generale (sostituzione del WPT ‘ABN’ con il WPT EGHIN

AIRAC A4/24, in vigore dal 18 Aprile 2024.

The most recent changes to instrument procedures of Torino Caselle are:

– implementation of new STAR and SID RNAV1/RNP1 procedures. ATS geography has been updated due to the downsizing of Torino CTR and APP frequencies have been changed (Milano Radar instead of Torino APP)

AIRAC A10/23, in force since November 30 2023.

– complete review (replacement of WPT ‘ABN’ with WPT EGHIN)

AIRAC A4/24, in forec from April 18 2024.

//////



STAR

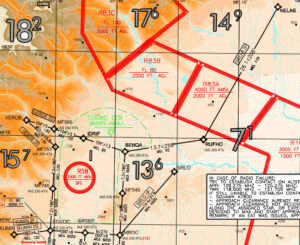

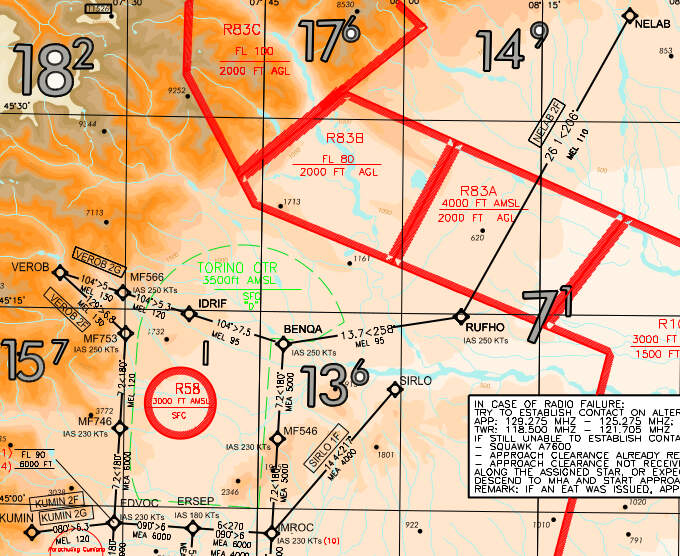

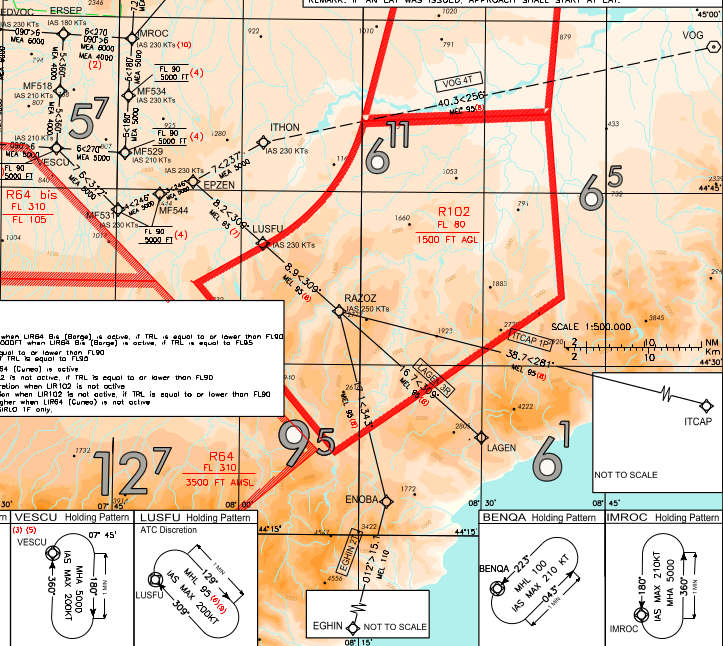

STAR RNAV1 or RNP1 RWY 36

Carta revisionata con l’AIRAC A4/24, in vigore dal 18 Aprile 2024. (sostituzione del WPT ABN con EGHIN)

Chart revised by AIRAC A4/24, in force from April 18, 2024. (Replacement of WPT ABN with EGHIN)

////

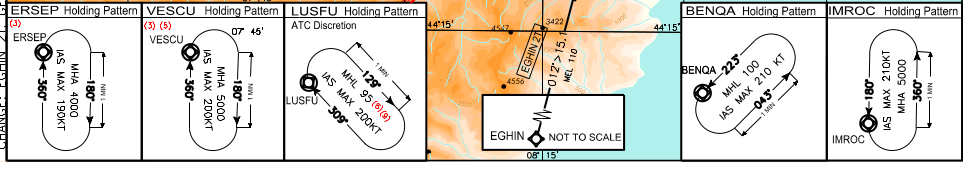

Le procedure terminano sul waypoint ERSEP. Su ERSEP e sui waypoints BENQA, LUSFU, IMROC e VESCU sono stabiliti circuiti d’attesa RNAV1:

The procedures end on ERSEP waypoint. RNAV1 holding patterns are established on ERSEP and BENQA, LUSFU, IMROC and VESCU waypoints:

ERSEP (inbound 360°/outbound 180°, +4000ft, -FL90 when LI R64bis is active, IAS MAX 190kt)

BENQA (inbound 223°/outbound 043°, +FL100, IAS MAX 210kt)

LUSFU (available at ATC discretion) (inbound 309°/outbound 129°, +FL95, IAS MAX 200kt)

IMROC (inbound 180°/outbound 360°, +5000ft, IAS MAX 210kt)

VESCU (not available when LIR64 is active (inbound 360°/outbound 180°, +5000ft, -FL90 when LI R64bis is active, IAS MAX 200kt)

/////

Descrizione delle procedure / Procedures description
NELAB 1F

NELAB TR 206° – RUFHO (+FL110, IAS MAX 250kt) – TR 258° – BENQA (+FL90) TR 180° – MF546 (+5000ft, IAS MAX 230kt) – IMROCMF534 (+5000ft/-FL90) – MF529 (IAS MAX 210kt) – TR 270° – VESCU – TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

VEROB 1G (ATC discretion)

VEROB – TR 104° – MF566 (+FL130, IAS MAX 250kt) IDRIF – (+FL120) – BENQA (+FL90) TR 180° – MF546 (+5000ft, IAS MAX 230kt) – IMROCMF534 (+5000ft/-FL90) – MF529 (IAS MAX 210kt) – TR 270° – VESCU – TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

VEROB 1F

VEROB – TR 129° – MF753 (+FL130, IAS MAX 250kt) TR 180° – MF746 (+FL120, IAS MAX 230kt) – EDVOC (+6000ft/-FL90) MF734 – MF729 (+5000ft/-FL90, IAS MAX 210kt) – TR 090° – VESCU – TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

KUMIN 1F

KUMIN – TR 080° – EDVOC (+FL120, IAS MAX 230kt) TR 090° – IMROC (+6000ft) TR 180° – MF534 (+5000ft/-FL90) – MF529 (IAS MAX 210kt) – TR 270° – VESCU – TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

KUMIN 1G (ATC discretion)

KUMIN – TR 080° – EDVOC (+FL120, IAS MAX 230kt) TR 180° – MF734 (+6000ft/-FL90) – MF729 (+5000ft/-FL90, IAS MAX 210kt) – TR 090° – VESCU – TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

SIRLO 1F

SIRLO – TR 217° – IMROC (+4000ft, IAS MAX 210kt) – TR 270° – ERSEP (IAS MAX 180kt)

Procedure strumentali di Torino

VOG 2T

VOG TR 256° – ITHON (+FL95 or +FL90 ATC discretion, IAS MAX 230kt) TR 237° – EPZEN (+5000ft) TR 246° – MF544 (+5000ft/-FL90) – MF531 TR 312° – VESCU (IAS MAX 210kt) TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

GEN 2P

GEN TR 281° – RAZOZ (+FL95 or +FL90 ATC discretion, IAS MAX 250kt) TR 309° – LUSFU (IAS MAX 230kt) – EPZEN (FL95 or +5000ft when LI R102 is not active ATC dicsretion) TR 246° – MF544 (+5000ft/-FL90) – MF531 TR 312° – VESCU (IAS MAX 210kt) TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

LAGEN 2R

LAGEN TR 309° – RAZOZ (+FL95 or +FL90 ATC discretion, IAS MAX 250kt) TR 309° – LUSFU (IAS MAX 230kt) – EPZEN (+FL95 or +5000ft when LI R102 is not active ATC discretion) TR 246° – MF544 (+5000ft/-FL90) – MF531 TR 312° – VESCU (IAS MAX 210kt) TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

EGHIN 1T

EGHIN TR 012° – ENOBA (+FL110) – TR 343° – RAZOZ (+FL95 or +FL90 ATC discretion, IAS MAX 250kt) TR 309° – LUSFU (IAS MAX 230kt) – EPZEN (+FL95 or +5000ft when LI R102 is not active ATC discretion) TR 246° – MF544 (+5000ft/-FL90) – MF531 TR 312° – VESCU (IAS MAX 210kt) TR 360° – MF518 (+4000ft) – ERSEP (IAS MAX 180kt)

Procedure strumentali di Torino

MSA

Unico settore di 360° basato su ARP / ARP-based 360° single sector: 15400ft

________



Link Routes and STAR
Link Routes

La sola rotta di collegamento rappresentata è la LUSIL 3E che conduce da LUSIL a SRN VOR/DME sulla rotta 240° (RDL 060 SRN VOR). Il WPT SRN’ è considerato un “flyover waypoint”, con livello minimo in rotta di FL 140.

Specifiche di navigazione: convenzionali.

The sole link route represented is LUSIL 3E leading from LUSIL to SRN VOR/DME on route 240° (RDL 060 SRN VOR). ‘SRN’ WPT is considered a ‘flyover waypoint’, with a minimum en-route level of FL 140.

Navigation specifications: conventional.

STAR

Le procedure terminano sul VOR/DME ‘CSL’, sul VOR/DME TOP’ e sul waypoint ‘OMILI’.

The procedures end on VOR/DME ‘CSL’, VOR/DME ‘TOP’ and waypoint ‘OMILI’.

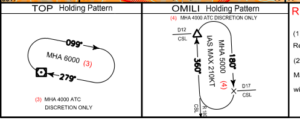

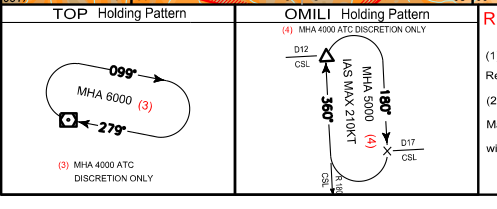

Sui citati waypoints sono stabiliti dei circuiti d’attesa convenzionali:

Conventional holding patterns are established at the mentioned waypoints:

VOR/DME CSL (inbound 218°/outbound 038°, +FL130, IAS MAX 230kt)

VOR/DME TOP (inbound 279°/outbound 099°, +6000ft or +4000ft ATC discretion, IAS MAX 210kt)

OMILI (inbound 360°/outbound 180°, +5000ft or +4000ft ATC discretion, IAS MAX 210kt)

////

Star to VOR/DME ‘CSL’

AKASU 3F (conventional)

AKASU – TR 185° – NELAB (+FL150) – TR 230° (RDL 050 CSL VOR) – CSL VOR/DME (+FL130)

AKASU 3F (RNAV1)

AKASU – TR 185° – NELAB (+FL150) – TR 230° – CSL (+FL130)

SRN 4B (conventional)

SRN VOR/DME – TR 265° – NELAB (+FL130) – TR 230° – CSL VOR/DME

SRN 4B (RNAV1)

SRN – TR 265° – NELAB (+FL130) – TR 230° – CSL

SRN 4C (conventional)

SRN VOR/DME – TR 254° – IBCUC (+FL130) – TR 227° – CSL VOR/DME

SRN 4C (RNAV1)

SRN – TR 254° – IBCUC (+FL130) – TR 227° – CSL

VEROB 4B (conventional)

VEROB – TR 110° – CSL VOR/DME (+FL130)

VEROB 4B (RNAV1)

VEROB – TR 110° – CSL (+FL130)

Procedure strumentali di Torino

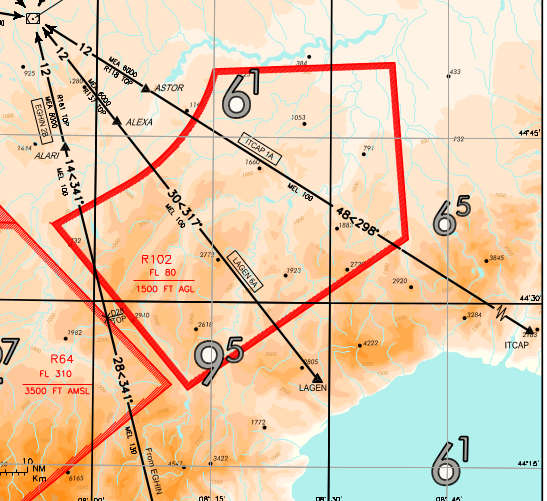

Star to VOR/DME ‘TOP’

CSL 5A (conventional)

CSL VOR/DME – TR 150° – TOP VOR/DME (+6000ft)

CSL 5A (RNAV1)

CSL – TR 150° – TOP (+6000ft)

AKASU 5E (conventional)

AKASU – TR 185° – NELAB (+FL150) – TR 206° (RDL 026 TOP VOR) – RUFHO (+FL90) – TOP VOR/DME (+6000ft)

AKASU 5E (RNAV1)

AKASU – TR 185° – NELAB (+FL150) – TR 206° – RUFHO (+FL90) – TOP (+6000ft)

SIRLO 5A (conventional)

SIRLO – TR 200° – TOP VOR/DME (+4000ft)

SIRLO 5A (RNAV1)

SIRLO – TR 200° – TOP (+4000ft)

SRN 3A (conventional)

SRN VOR/DME – TR 265° – NELAB (+ FL130) – TR 206° – RUFHO (+FL90) – TOP VOR/DME (+6000ft)

SRN 3A (RNAV1)

SRN – TR 265° – NELAB (+ FL130) – TR 206° – RUFHO (+FL90) – TOP (+6000ft)

GEN 6A (conventional)

GEN VOR/DME – TR 298° – ASTOR (+ FL90) – TOP VOR/DME (+6000ft)

GEN 6A (RNAV1)

GEN – TR 298° – ASTOR (+ FL90) – TOP (+6000ft)

LAGEN 5A (conventional)

LAGEN – TR 317° – ALEXA (+ FL90) – TOP VOR/DME (+6000ft)

LAGEN 5A (RNAV1)

LAGEN – TR 317° – ALEXA (+ FL90) – TOP (+6000ft)

EGHIN 1A (RNAV1)

EGHIN – TR 028° – LAGEN (+ FL100) – TR 317° – ALEXA (+ FL90) – TOP (+6000ft)

EGHIN 1B (conventional)

EGHIN TR 341° – ALARI (+ FL100) – TOP VOR/DME (+6000ft)

EGHIN 1B (RNAV1)

ABN – TR 341° – ALARI (+ FL100) – TOP (+6000ft)

KUMIN 5A (conventional)

KUMIN – TR 094° – LADUS (+ FL130) – TOP VOR/DME (+6000ft)

KUMIN 5A (RNAV1)

KUMIN – TR 094° – LADUS (+ FL130) – TOP (+6000ft)

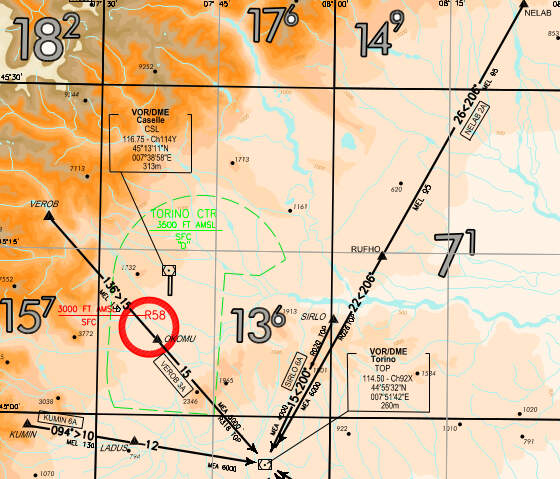

VEROB 2A (conventional)

VEROB – TR 135° – OKOMU (+ FL130) – TOP VOR/DME (+6000ft)

VEROB 2A (RNAV1)

VEROB – TR 135° – OKOMU (+ FL130) – TOP (+6000ft)

LEV 5A (conventional)

LEV L – TR 022° – TOP VOR/DME (+4000ft)

LEV 5A (RNAV1)

LEV – TR 022° – TOP (+4000ft)

Star to OMILI

TOP 2A (conventional)

TOP VOR/DME – TR 279° – MC 506 (+4000ft) – TR 003° – OMILI

TOP 2A (RNAV1)

TOP – TR 279° – MC 506 (+4000ft) – TR 003° – OMILI

MSA

______

STAR RNAV1 RWY 36 (ATC discretion)

Le procedure terminano sul waypoint OMILI, sul quale è stabilito anche un circuito d’attesa convenzionale (inbound 360°, outbound 180° +5000ft o 4000ft a discrezione ATC, IAS MAX 210kt). OMILI è un flyover waypoint nel circuito.

Procedures end on OMILI waypoint, on which a conventional holding pattern is also established (inbound 360°, outbound 180° +5000ft or 4000ft at ATC discretion, IAS MAX 210kt). OMILI is a flyover waypoint for the holding pattern.

/////

ANAKI 4A

ANAKI (+FL130, IAS MAX 250kt) TR 286° – ENOBA – TR 315° – MF501 – MF502 (+FL90, IAS MAX 230kt) – MF503 (+6000ft, IAS MAX 210kt) – TR 001° – OMILI (+5000ft or 4000ft at ATC discretion)

LAGEN 4B

LAGEN (+FL130, IAS MAX 250kt) – TR 263° – MF504 – TR 315° – MF501 – MF502 (+FL90, IAS MAX 230kt) – MF503 (+6000ft, IAS MAX 210kt) – TR 001° – OMILI (+5000ft or 4000ft at ATC discretion)

Procedure strumentali di Torino

______

______

Procedure strumentali di avvicinamento

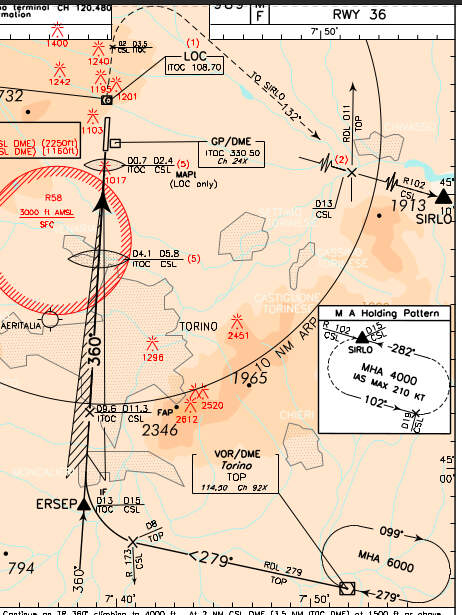

ILS CAT II or LOC-Z RWY 36

IAF sul VOR/DME ‘TOP’, sul quale è attestato anche un circuito d’attesa (inbound 279°, outbound 099°, +6000ft).

Segmento iniziale su TR 279° (RDL 279 TOP VOR).

A 8NM TOP DME virata a destra sull’ IF ERSEP (13NM ITOC DME, +4000ft), FAP a 9.6 NM ITOC DME e segmento finale su TR 360°.

MAPt (LOC only) sul Middle Marker (in caso di avaria, sostituito da 0.7NM ITOC DME).

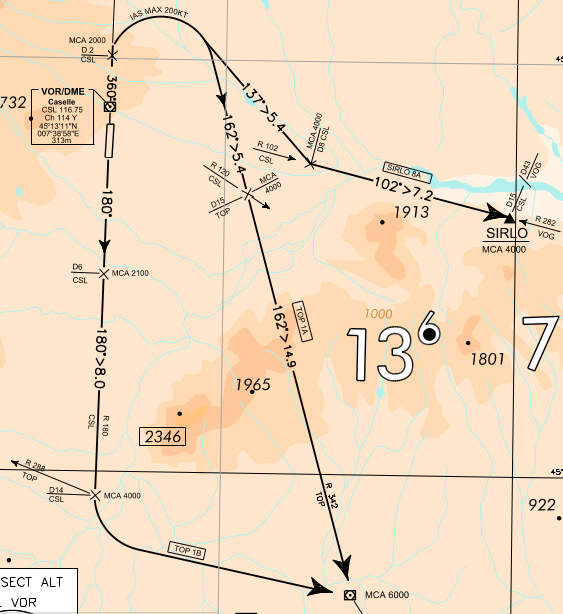

Mancato avvicinamento con virata a destra su TR 132° a 2NM CSL DME (+1500ft).

Quindi RDL 102 CSL VOR fino al circuito d’attesa su SIRLO .

English text:

IAF on VOR/DME ‘TOP’, on which has also been established an holding pattern (inbound 279°, outbound 099°, +6000ft).

Initial segment on TR 279° (RDL 279 TOP VOR).

At 8NM TOP DME right turn on IF ERSEP (13NM ITOC DME, +4000ft), FAP at 9.6 NM ITOC DME and final segment on TR 360°.

MAPt (LOC only) on Middle Marker (in case of failure, replaced by 0.7NM ITOC DME).

Missed approach with right turn on TR 132° at 2NM CSL DME (+1500ft).

Then RDL 102 CSL VOR to holding pattern on SIRLO .

Procedure strumentali di Torino

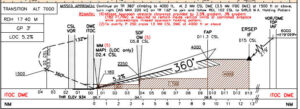

vista in profilo / profile view

(informazioni aggiornate alla variante AIRAC A10/23, in vigore dal 30 Novembre 2023)

(information updated to AIRAC A10/23, effective November 30 2023)

/////

minime / minima

/////

Note:

1) OM sostituito dalla distanza 4.1NM ITOC DME / OM replaced by distance 4.1NM ITOC DME

______

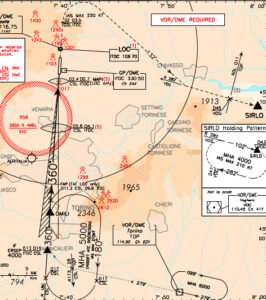

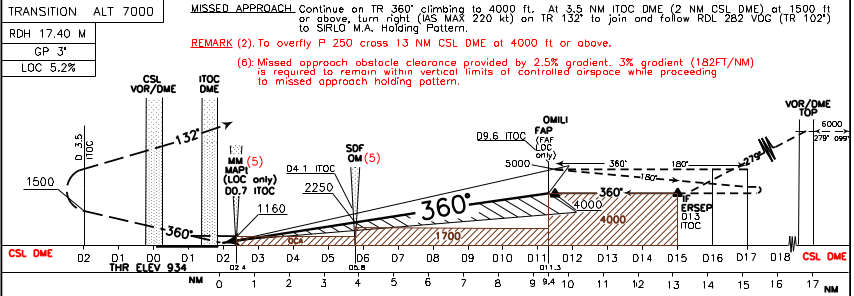

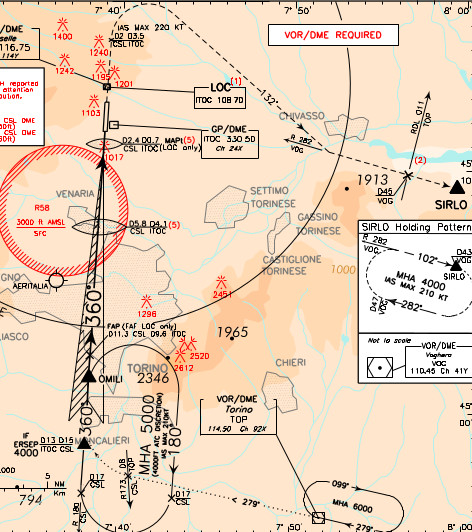

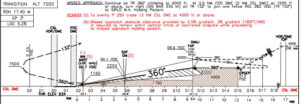

ILS CAT II or LOC-Y RWY 36

Pressochè identica alla ILS CAT II or LOC-Z RWY 36, ma qui, nel segmento iniziale e finale i riferimenti sono al TACAN ‘CLL’.

Nella procedura di mancato avvicinamento, invece, radiali e distanze nel circuito d’attesa su SIRLO si riferiscono al VOR/DME ‘VOG’.

Almost identical to ILS CAT II or LOC-Z RWY 36, except for the references to TACAN ‘CLL’. in the initial and final segment.

In the missed approach procedure, however, radials and distances in the holding pattern on SIRLO are referred to VOR/DME ‘VOG’.

Procedure strumentali di Torino

/////

Note:

1) OM sostituito dalla distanza 4.2NM CLL TACAN / OM replaced by distance 4.2NM CLL TACAN

2) MM sostituito dalla distanza 0.8NM CLL TACAN / MM replaced by distance 0.8NM CLL TACAN

3) MSA basato sull’ARP (unico settore di 360°, 15400ft) / MSA based on ARP (single 360° sector, 15400ft)

_____

ILS CAT II or LOC-X RWY 36

Sul VOR/DME ‘CSL’, sul VOR/DME ‘TOP’ e su OMILI, sono attestati dei circuiti d’attesa:

On ‘CSL’ VOR/DME, ‘TOP’ VOR/DME and on waypoint OMILI, are established holding patterns:

VOR/DME ‘TOP (inbound 279°, outbound 099°, +6000ft).

VOR/DME ‘CSL’ (inbound 218°, outbound 038°, +FL130).

OMILI (inbound 360°, outbound 180° +5000ft o 4000ft at ATC discretion, IAS MAX 210kt)

/////

Initial segment from VOR/DME ‘TOP:

TOP VOR/DME (+6000ft) – TR 279° (RDL 279 TOP VOR)

A 8NM TOP DME virata a destra sull’ IF ERSEP (15NM CSL DME, +4000ft).

At 8NM TOP DME, right turn to IF ERSEP (15NM CSL DME, +4000ft).

Initial segment from VOR/DME ‘CSL:

Tratto outbound/ outbound leg TR 195° (RDL 195 CSL VOR, IAS MAX 220kt). A/at 18NM CSL DME (+6000ft) virata a sinistra per intercettare / left turn to intercept RDL 180 CSL VOR (18NM CSL +5000ft) e proseguire fino all’IF ERSEP / and proceed bound to IF ERSEP (15NM CSL DME, +4000ft).

Initial segment from OMILI:

Tratto outbound su / outboud leg on TR 180°. A/at 17NM CSL DME (+4000ft) virata a destra per intercettare / right turn to intercept RDL 180 CSL (TR 180°) fino all’IF ERSEP / bound to IF ERSEP (15NM CSL DME, +4000ft).

/////

FAP (FAF LOC only) a/at 11.3NM CSL DME  (+4000ft) e segmento finale su / and final segment on TR 360°.

MAPt (LOC only) sul/on Middle Marker (sostituito da 2.4NM CSL DME, in caso di avaria/replaced by 2.4NM CSL DME in case of failure)

Procedure strumentali di Torino

Mancato avvicinamento come per le altre procedure (holding su SIRLO).

Missed approach as for the other procedures (SIRLO holding pattern)

////

profilo / profile view

(informazioni aggiornate alla variante AIRAC A10/23, in vigore dal 30 Novembre 2023)

(information updated to AIRAC A10/23, effective November 30 2023)

/////

minime come da ILS CAT II or LOC-Z RWY 36 / minima as for ILS CAT II or LOC-Z RWY 36

NotaRemark:

OM sostituito dalla distanza 5.8NM CSL DME / OM replaced by distance 5.8NM CSL DME

_____

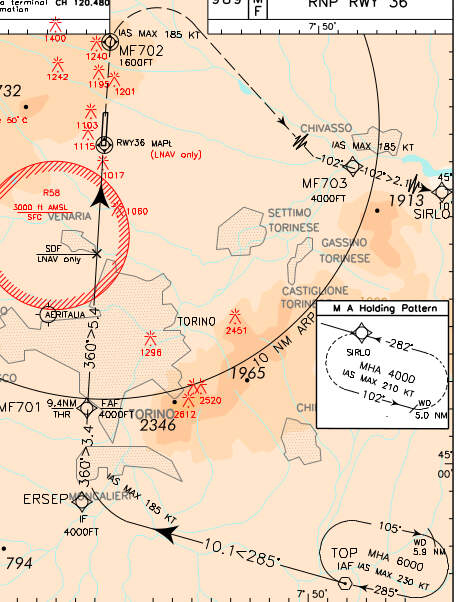

RNP RWY 36

IAF sul waypoint ‘TOP’ sul quale è attestato anche un circuito d’attesa RNAV1 (inbound 285°/outbound 105° – MHA 6000ft).

Segmento iniziale su TR 285° fino a ERSEP (IF, +4000ft).

Virata a destra su TR 360° (IAS MAX 185kt) fino a MF701 (FAF).

Segmento finale su TR 360° e MAPt (LNAV only) su THR 36 (flyover waypoint).

Mancato avvicinamento con virata a destra su MF702 (flyover waypoint, +1600ft – IAS MAX 185kt), quindi TR 102° – MF703 (+4000ft) fino a SIRLO, dove è attestato anche un circuito d’attesa RNAV1 (inbound 282°/outbound 102° – MHA 4000ft – IAS MAX 210kt).

English text:

IAF on waypoint ‘TOP’ on which a RNAV1 holding pattern is established (inbound 285°/outbound 105° – MHA 6000ft).

Initial segment on TR 285° to ERSEP (IF, +4000ft).

Right turn on TR 360° (IAS MAX 185kt) to MF701 (FAF).

Final segment on TR 360° and MAPt (LNAV only) to THR 36 (flyover waypoint).

Missed approach with right turn on MF702 (flyover waypoint, +1600ft – IAS MAX 185kt), then TR 102° – MF703 (+4000ft) to SIRLO, where there is also an RNAV1 holding circuit (inbound 282°/outbound 102° – MHA 4000ft – IAS MAX 210kt).

Procedure strumentali di Torino

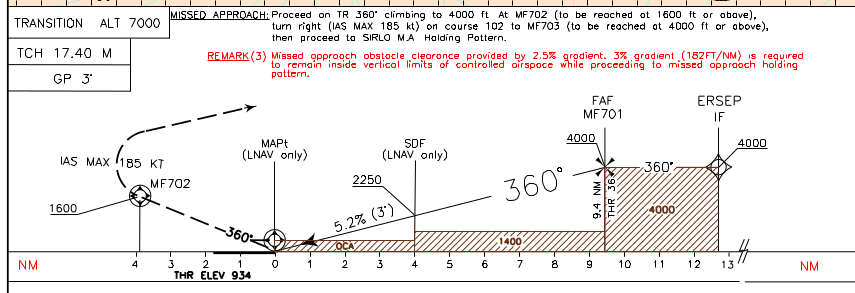

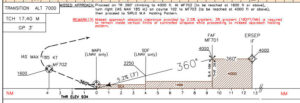

Vista in profilo / profile view

(informazioni aggiornate alla variante AIRAC A10/23, in vigore dal 30 Novembre 2023)

(information updated to AIRAC A10/23, effective November 30 2023)

////

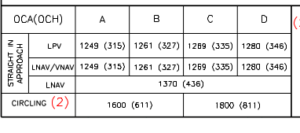

Minime / minima

_____

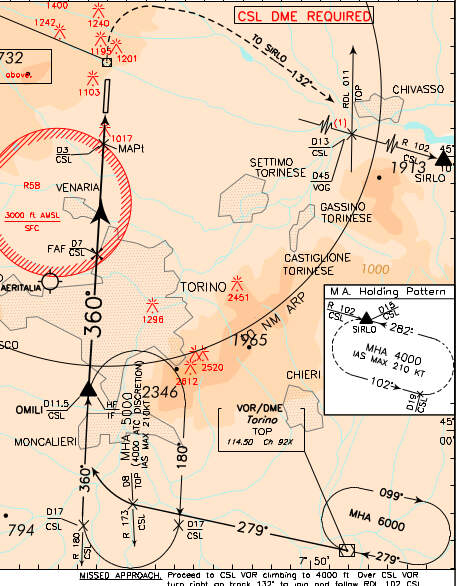

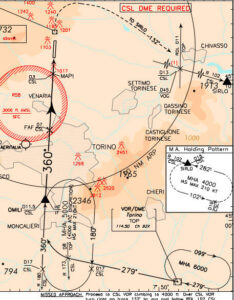

VOR RWY 36

Sul VOR/DME ‘CSL’, sul VOR/DME ‘TOP’ e su OMILI, sono attestati dei circuiti d’attesa:

On ‘CSL’ VOR/DME, ‘TOP’ VOR/DME and on waypoint OMILI are established holding patterns:

VOR/DME ‘TOP (inbound 279°, outbound 099°, +6000ft).

VOR/DME ‘CSL’ (inbound 218°, outbound 038°, +FL130).

OMILI (inbound 360°, outbound 180° +5000ft or 4000ft at ATC discretion, IAS MAX 210kt)

/////

Initial segment from ‘TOP’ VOR/DME:

TOP VOR/DME (+6000ft) – TR 279° (RDL 279 TOP VOR).

A 8NM TOP DME virata a destra sull’ IF OMILI (RDL 180/11.5NM CSL DME, +4000ft)

At 8NM TOP DME, right turn on IF OMILI (RDL 180/11.5NM CSL DME, +4000ft)

Initial segment from ‘CSL’ VOR/DME:

Tratto outbound/outboud leg TR 195° (RDL 195 CSL VOR). A/at 18NM CSL DME (+6000ft) virata a sinistra per intercettare/left turn to intercept RDL 180 CSL VOR (18NM CSL +5000ft) e proseguire fino all’ IF OMILI / and proceed fo IF OMILI(11.5NM CSL DME, +4000ft).

Initial segment from OMILI:

Tratto outbound /outboud leg TR 180°. A/ at 17NM CSL DME (+4000ft) virata a destra per intercettare / left turn to intercept RDL 180 CSL (TR 180°) fino all’IF OMILI / until IF OMILI (RDL 180/11.5NM CSL DME)

/////

FAF a / at 7NM CSL DME, +2600ft) e segmento finale su / and final segment on TR 360°.

MAPt a / at 3NM CSL DME e mancato avvicinamento con virata a destra destra sul / and missed approach with right turn on VOR/DME ‘CSL’ (TR 132°) per intercettare / to intercept RDL 102 CSL VOR fino al circuito d’attesa su / until holding pattern on SIRLO.

Procedure strumentali di Torino

////

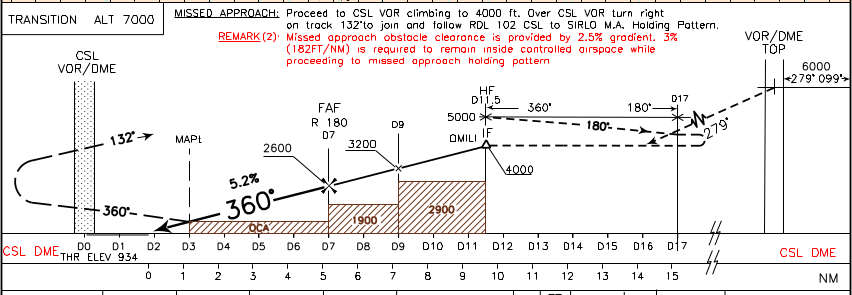

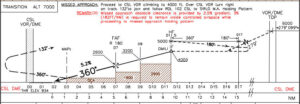

profilo / profile view:

(informazioni aggiornate alla variante AIRAC A10/23, in vigore dal 30 Novembre 2023)

(information updated to AIRAC A10/23, effective November 30 2023)

///

minime/ minima

____

____

SID
SID RNAV1 or RNP1 RWY 36

Procedure istituite con la variante AIRAC A10/23, in vigore dal 30 Novembre 2023.

/////

Avviso / Warning:

La Superficie di Identificazione Ostacoli (OIS 2.5%) è penetrata da ostacoli che non sono stati considerati per il gradiente di progettazione della procedura.

Obstacles identification surface (OIS 2.5%) penetrated by obstacles that were not considered for the published

Nota / Remark:

Minimum climb gradient 475ft/NM (7.8%) until leaving 5000ft.

For SID LAGEN 1W and TESTO 1X: 475ft/NM (7.8%) until leaving 5000ft, then 250ft/NM (4.1%) until leaving FL 100.

////

KUKEV 1X

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft, IAS MAX 230kt) – TR 200° MF422 (IAS MAX 250kt) – TR 289° – MF546 (+FL100) – TR 322° – MF427 (+FL150) – MF428 (+FL180 or +FL190 depending on Geneva QNH) – KUKEV (+FL200)

KUKEV 1Z (ATC discretion)

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft, IAS MAX 230kt) – TR 039° RUFHO (+FL100, IAS MAX 250kt) – TR 309° – MF419 – TR 280° – MF429MATOG (+FL180 or +FL190 depending on Geneva QNH) – TR 312° – KUKEV (+FL200)

MMP 1Z

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft) – TR 103° TONDA (+FL100) – TR 031° – MMP (+FL120)

IXUSA 1X

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft, IAS MAX 230kt) – TR 200° – MF422 (IAS MAX 250kt) – TR 289° – MF546 (+FL100) – TR 278° – MF424 – MF426 (+FL200) – IXUSA

ASTIG 1Z

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft) – TR 133° ASTIG (+FL100)

Procedure strumentali di Torino

TESTO 1X

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft) – TR 165° ASTOR (+FL110) – TR 117° – TESTO

LAGEN 1W

TR 360° (+1391ft) – MF702 (flyover WPT, +2000ft, IAS MAX 200kt) – MF418 – (+5000ft) – TR 123° – SIRLO (+6000ft) – TR 165° ASTOR (+FL110) – TR 144° – LAGEN

Procedure strumentali di Torino

_________

SID RNAV1 or RNP1 RWY 18

Procedure istituite con la variante AIRAC A10/23, in vigore dal 30 Novembre 2023.

/////

Avviso / Warning:

La Superficie di Identificazione Ostacoli (OIS 2.5%) è penetrata da ostacoli che non sono stati considerati per il gradiente di progettazione della procedura.

Obstacles identification surface (OIS 2.5%) penetrated by obstacles that were not considered for the published

Nota / Remark:

Minimum climb gradient 5.4% (330ft/NM) until leaving 4000ft. LAGEN 1Y and TESTO 1Y only: Minimum climb gradient 5.4% (330ft/NM) until leaving FL 100

/////

KUKEV 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft, IAS MAX 250kt) – TR 020° – MF422 (IAS MAX 250kt) – TR 289° MF546 (+FL100) – TR 322° – MF427 (+FL150) – MF428 (+FL180 or +FL190 depending on Geneva QNH) – KUKEV (+FL200)

MMP 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft) – TR 057° TONDA (+FL100) – TR 031° – MMP (+FL120)

IXUSA 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft, IAS MAX 250kt) – MF422 – TR 289° – MF546 (+FL100) – TR 278° – MF424 – MF426 (+FL200) – IXUSA

ASTIG 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft) – TR 092° ASTIG (+FL100)

Procedure strumentali di Torino

TESTO 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft) – TR 129° ASTOR (+FL110) – TR 117° – TESTO

LAGEN 1Y

TR 180° (+1325ft) – ERSEP (+4000ft, IAS MAX 230kt) – TR 091° – MF421 (+6000ft) – TR 129° ASTOR (+FL110) – TR 144° – LAGEN

Procedure strumentali di Torino

_______

Salita iniziale e SID RWY 18/36
Salita iniziale RWY 36 / initial climb RWY 36

Dopo il decollo, intercettare RDL 360 CSL VOR (TR 360°). A 2NM CSL DME (+2000ft), proseguire sulla SID assegnata. / After take-off join RDL 360 CSL VOR (TR 360°). At 2NM CSL DME (+2000ft) proceed on assigned SID

Note / Remarks:

1) Ostacoli ravvicinati penetranti la OIS 2.5% sono presenti ma non sono stati considerati per il gradiente di progettazione procedure / Close-in obstacles penetrating OIS 2.5% exist but were not considered for the published procedure design gradient

2) Minimum climb gradient: 475 ft/NM (7,8%) fino a lasciare 4000 ft. / Minimum climb gradient: 475 ft/NM (7,8%) until leaving 4000 ft.

3) IAS MAX 200 kt durante le virate, per motivi ATC / IAS MAX 200 kt during turn due to ATC reason.

/////

 TOP 9A (conventional)

TR 162° (RDL 342 TOP VOR) (a/at 15NM TOP DME: +4000ft) – TOP VOR (+6000ft)

TOP 9A (RNAV1)

TR 358° (+1400ft) – TR 360° – MF 401 (flyover waypoint, +2000ft) – MF 404 – TR 162° – MF 417 (+4000ft) – TOP (+6000ft)

SIRLO 7A (conventional)

RDL 360 CSL VOR (at 2NM CSL DME: 2000ft) – TR 137° – RDL 102 CSL VOR (at 8NM CSL DME: +4000ft) – SIRLO.

SIRLO 7A (RNAV1)

TR 358° – TR 360° – MF401 (flyover waypoint, +2000ft, IAS MAX 200kt) – MF 402 – TR 137° – MF 403 (+4000ft) TR 102° – SIRLO

(information updated by AIRAC A4/24, in force from April 18 2024)

//////

Partenze RWY 18 / RWY 18 departures
Note/Remarks:

1) Ostacoli ravvicinati penetranti la OIS 2.5% sono presenti ma non sono stati considerati per il gradiente di progettazione procedure / Close-in obstacles penetrating OIS 2.5% exist but were not considered for the published procedure design gradient

2) Minimum climb gradient: 330 ft/NM (5,4%) fino a lasciare 3000 ft. / Minimum climb gradient: 330 ft/NM (5,4%) until leaving 3000 ft.

/////

 TOP 8B (conventional)

RDL 180 CSL VOR (TR 180°) (a/at 6NM CSL VOR: +2100ft). Passati i 4000ft e comunque non oltre le/ crossing 4000ft and however not beyond 14NM CSL DME, virare a sinistra verso / turn left bound to TOP VOR (+6000ft)

TOP 8B (RNAV1)

TR 180° (+1350ft) – MF 406 (+2100ft) – MF 407 (+4000ft) – TR 108° – TOP (+6000ft)

Procedure strumentali di Torino

______

TSE RWY 36/18 ATC discretion
TSE Southbound
KUKEV 9M (conventional)

SIRLO – RDL 133 CSL VOR (fine virata/end turn: +6000ft; a/at 6NM CSL DME: +FL110) – CSL VOR/DME – RDL 313 (a/at 8.5NM CSL DME: +FL150) – RDL 325 TOP VOR (a/at 34NM TOP DME: +FL180/FL190, in accordo al QNH di Ginevra/according to Geneve QNH) – KUKEV

KUKEV 9M (RNAV1)

SIRLO (+4000ft) – MF 408 (+6000ft) – TR 313° – MF416 (+FL110) – MF409 (+FL150) – TR 325° – MF 411 (+FL180/FL190 , in accordo al QNH di Ginevra/according to Geneve QNH) – KUKEV

KUKEV 7L (conventional)

TOP VOR/DME (+6000ft) – BARBY (+FL110) – RDL 325 TOP VOR (a/at 28NM TOP DME: +FL150; a/at 34NM TOP DME: +FL180/FL190 , in accordo al QNH di Ginevra/according to Geneve QNH) – KUKEV

KUKEV 7L (RNAV1)

TOP (+6000ft) – TR 325° – BARBY (+FL110) – MF 409 (+FL150) – MF 411 (+FL180/FL190, in accordo al QNH di Ginevra/according to Geneve QNH) – KUKEV

KUKEV 1N (conventional)

SIRLO – RDL 133 CSL VOR (fine virata/end turn: +6000ft; a/at 4NM CSL DME: +FL120) – RDL 335 TOP VOR – MATOG (+FL180/FL190 in accordo al QNH di Ginevra/according to Geneve QNH) – TR 312° – KUKEV

KUKEV 1N (RNAV1)

SIRLO (+4000ft, IAS MAX 240kt) – MF408 (+6000ft, IAS MAX 240kt) – TR 313° – MF412 (+FL120) – TR 335° – MATOG (+FL180/FL190 in accordo al QNH di Ginevra/according to Geneve QNH) – TR 312° – KUKEV

KUKEV 8P (conventional)

TOP VOR/DME (+6000ft) – RDL 337 TOP VOR (a/at 16NM TOP DME: +FL120) – MATOG (+FL180/FL190 in accordo al QNH di Ginevra/according to Geneve QNH) – KUKEV

KUKEV 8P (RNAV1)

TOP (+6000ft) – TR 335° – MF 412 (+FL120) – MATOG (+FL180/FL190 in accordo al QNH di Ginevra/according to Geneve QNH) – TR 312° – KUKEV

IXUSA 1L (conventional)

TOP VOR/DME (+6000ft) – RDL 295 TOP VOR (a/at 12NM TOP DME: +FL130; a/at 25NM TOP DME: FL 200) – IXUSA

IXUSA 1L (RNAV1)

TOP (+6000ft) – TR 295° – MF 413 (+FL130) – MF414 (+FL200) – IXUSA

TSE Northbound

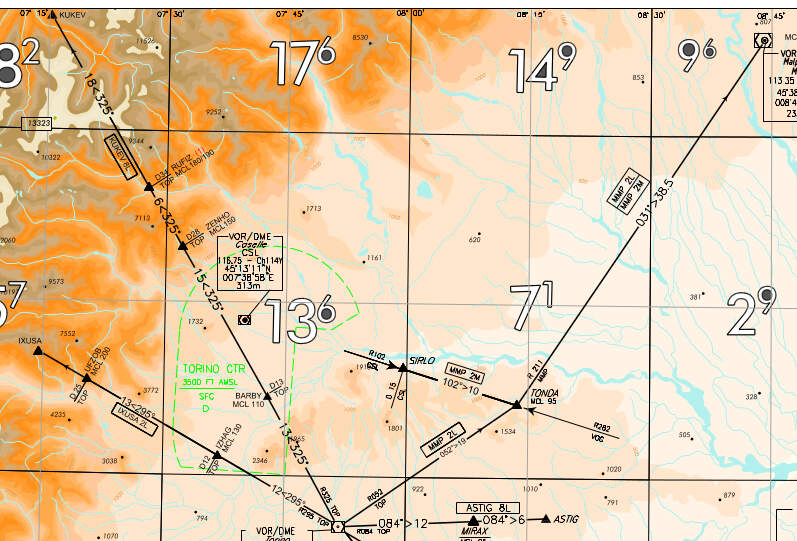

CANNE 7M (conventional)

SIRLO (+4000ft) – RDL 102 CSL VOR – TONDA (+FL90) – RDL 211 MMP VOR (+FL120, TR 031°) – MMP VOR – RDL 008 MMP – CANNE (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH).

CANNE 7M (RNAV1)

SIRLO (+4000ft) – TR 102° – TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 008° – CANNE (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH)

CANNE 6L (conventional/RNAV1)

TOP (+6000ft) – TR 052° – TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 008° – CANNE (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH)

ABESI 7M (conventional)

SIRLO (+4000ft) – RDL 102 CSL VOR – TONDA (+FL90) – RDL 211 MMP VOR (+FL120) – MMP VOR -RDL 020 – ABESI (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH).

ABESI 7M (RNAV1)

SIRLO (+4000ft) – TR 102°– TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 020° – ABESI  (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH)

ABESI 6L (conventional/RNAV1)

TOP (+6000ft) – TR 052° – TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 020° – ABESI (+FL140/FL150 in accordo al QNH di Zurigo/according to Zurich QNH)

SRN 7M (conventional)

SIRLO – RDL 102 CSL VOR – TONDA (+FL90) – RDL 211 MMP VOR (+FL120) – MMP VOR – RDL 086 MMP – SRN VOR/DME.

SRN 7M (RNAV1)

SIRLO (+4000ft) – TR 102° – TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 086° – SRN

SRN 6L (conventional/RNAV1)

TOP (+6000ft) – TR 052° – TONDA (+FL90) – TR 031° – MMP (+FL120) – TR 086° – SRN

GEN 7M (conventional)

SIRLO (+4000ft) – RDL 102 CSL VOR – TONDA (+FL90) – RDL 316 GEN VOR (TR 136°) – GEN VOR/DME (MCL come da seguente segmento di rotta/according to next route segment).

GEN 7M (RNAV1)

SIRLO (+4000ft) – TR 102° – TONDA (+FL90) – TR 136° – GEN (MCL come da seguente segmento di rotta/according to next route segment).

GEN 2L (conventional/RNAV1)

TOP (+6000ft) – TR 117° – ASTOR (+FL90) – GEN (MCL come da seguente segmento di rotta/according to next route segment).

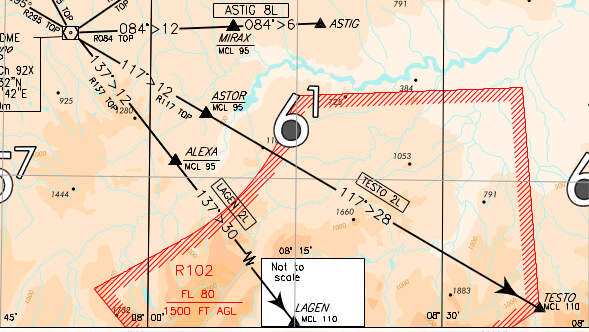

LAGEN 1L (conventional/RNAV1)

TOP (+6000ft) – TR 137° – ALEXA (+FL90) – LAGEN (+FL110)

ASTIG 7M (conventional)

SIRLO (+4000ft) – RDL 102 CSL VOR – TONDA (+FL90) – TR 163° – ASTIG.

ASTIG 7M (RNAV1)

SIRLO (+4000ft) – TR 102° – TONDA (+FL90) – TR 163° – ASTIG

ASTIG 6L (conventional/RNAV1)

TOP (+6000ft) – TR 084° – MIRAX (+FL90) – ASTIG

Procedure strumentali di Torino

______

TSE RNAV1 RWY 36

GEN 9N

SIRLO (+4000ft) – TR 165° – ASTOR (+FL90) – TR 117° – TESTO – GEN

LAGEN 9N

SIRLO (+4000ft) – TR 165° – ASTOR (+FL90) – NEDED – TR 137° – LAGEN (+FL110)

LAGEN 5M

SIRLO (+4000ft) – TR 102° – TONDA (+FL90) – TR 162° – LAGEN (+FL110)

Procedure strumentali di Torino

______

______

______

Leave a Comment

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *
